Introduction

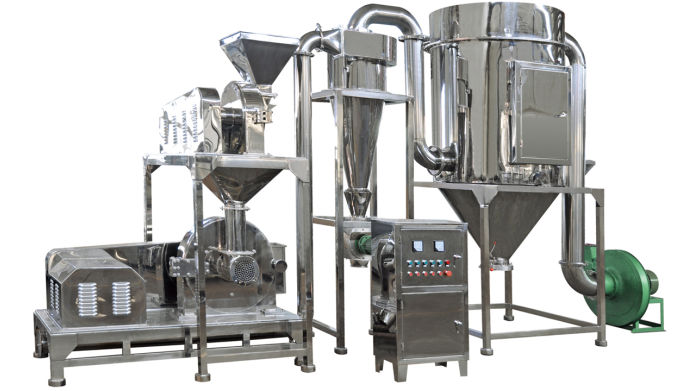

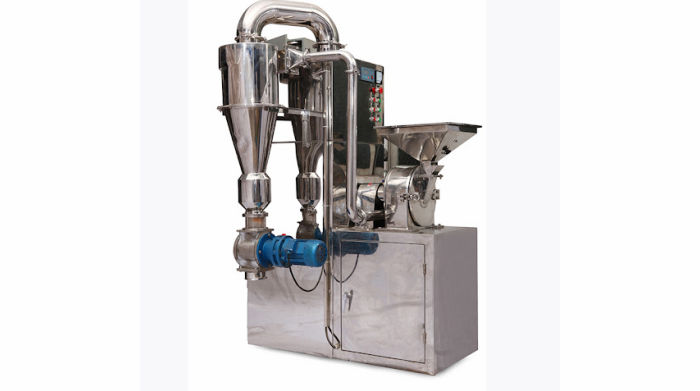

Pulverizer developed by Shandong Joyang Machinery Machine Co., Ltd. is durable, easy to operate, and low energy consumption. The machine is made of all stainless steel, which is composed of crushing room, cyclone, air locker, dust collection room, blower, control box. The pulverizer is widely used in puff food production line, fish feed production line, pet food production line, etc.


According to the different requirements of customers on the precision of crushed raw materials, our pulverizer can crush from 20 mesh to 120 mesh, and the precision of crushing can be achieved by replacing the pulverizer screen.


Shandong Joyang Machinery Co., Ltd. can provide different types of pulverizer with different capacity to match different extruder production lines.

For crushing sugar, plastic powder, medicine and other heat-sensitive materials, we can also provide customers with water cooling type pulverzier. If customers want to crush to 200 mesh, we can provide superfine pulverizer.


Sample:


Parameter

Multifunctional Pulverizer

Model

Capacity
(kg/h)

Install Power
(kw)

Dimensions
(mm)

JY-20B

20-150

4

650×500×1250

JY-30B(Integral)

100-300

8

750×600×1250

JY-30B(Combination)

150-350

9

1000×620×1250

JY-40B(Integral)

200-400

10

1200×650×1650

JY-40B(Combination)

250-450

12

3050×1100×2380

JY-50B

300-500

21

3850×1100×2380

JY-60B

500-1000

26

4250×1100×2380

JY-80B

600-2000

56

4800×1100×2380

JY-100B

700-3000

78

6000×1100×2380

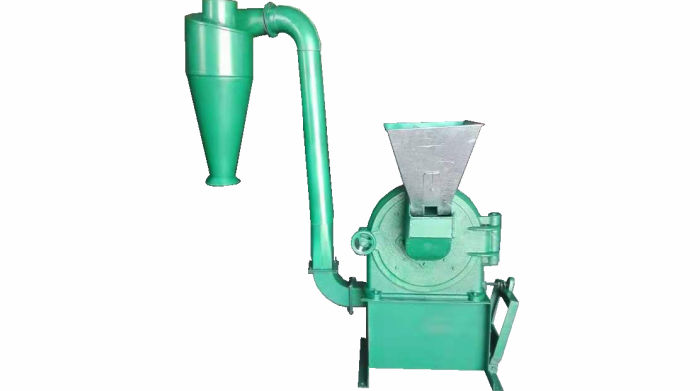

Pulverizer (Iron material)

Model

Capacity
(kg/h)

Install Power
(kw)

Dimensions
(mm)

JY-45

100-500

7.5

1200×650×1100

Mico-Pulverizer

Model

Capacity
(kg/h)

Install Power
(kw)

Dimensions
(mm)

JY-20

30-300

19

1500×450×2000

JY-30

50-500

56

2000×1000×2500

High Efficiency Pulverizer

Model

Capacity
(kg/h)

Install Power
(kw)

Dimensions
(mm)

JY-600

250-350

26

1300×550×1500

JY-800

450-500

49

1400×650×1700

JY-1000

600-650

64

1550×700×1850
