The batch type fryers and fully automatic stainless steel mesh belt fryers developed and manufactured by Joyang Machinery Co., Ltd. can be individually customized according to the factory’s energy/fuel, space, and customers’ output requirements . According to energy conditions, our fryers can be electric fryers, gas fryers, diesel fryers, etc., and the heating methods can be designed as internal heating and external circulation heating.

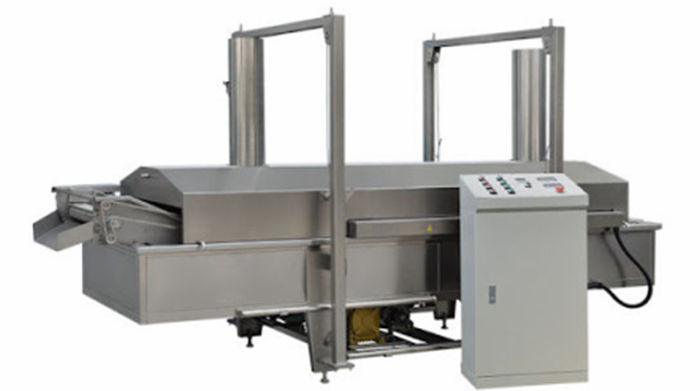

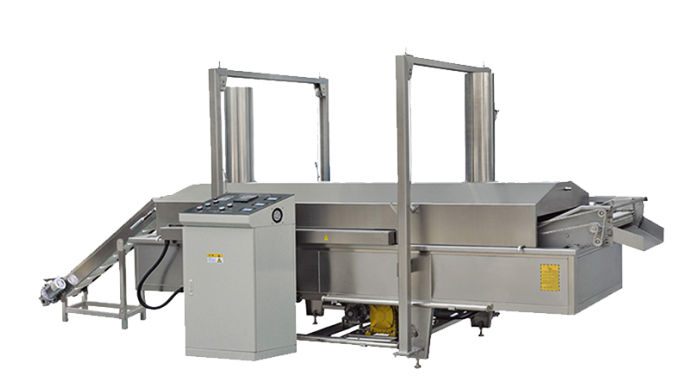

The fully automatic stainless steel continuous fryers produced by our company can be equipped with corresponding oil storage tanks, various types oil circulation filters, high-performance circulating oil pumps, and multi-energy heating devices (such as electric heating tubes, burners, circulating oil heat exchange furnaces, etc.) to ensure the stability of oil temperature and edible oil quality during frying. While ensuring accurate oil temperature control, the frying time of all fryers can be precisely controlled according to the frying crafts requirements. For foods of different densities and sizes, we will also equip you with suitable conveyor belts to fully guarantee the accuracy of frying time and discharging time.
In order to obtain delicious and healthy fried foods with low oil content, we can also provide customers with a centrifugal stainless steel deoiling machine, which has a fast start-up speed, automatic loading and discharging, automatic deoiling time control, high deoiling efficiency, low breakage rate, greatly extending the shelf life of fried foods and improving product quality.
These designs greatly reduce the participation of workers in the production process, saves energy and labor costs as much as possible, and meet strict food hygiene requirements, thereby meeting the continuous automated production needs of various scales food production factories.
At present, the frying machines produced by our company are widely used in various food production fields, such as puffed foods (Bugles, Rice crisps, Pellet Chips, Cereal Flakes, Cheetos/Kurkure, Hollow Potato Flute, Potato Chips, French Fries, etc.), wheat flour made fried food products (Jiangmi Noodles, Mahua, Snow Date Crisp, etc.), seafood (squid, yellow croaker, shrimp, fish fillet, etc.), meat (meat balls, chicken wings, chicken fillet, chicken legs, pig skin, etc.), nuts (peanuts, cashews, hazelnuts, pine nuts, sunflower seeds, etc.), grains (corn, peas, broad beans, green beans, etc.), and edible insects (such as grasshoppers, crickets, etc.) and other delicious foods suitable for frying.
If you are interested in large-scale automated food frying machines, please feel free to inquire!
Sample:
Full automatic continuous frying machine main parameters:
| Model |
Power/Heat resource |
Dimension（mm） |
Frying area(mm) |
Capacity(based on materials) |
|
JY-3500D/600 |
63KW（electric/internal heating） |
3640*1580*2200 |
2200*550*70 |
150~300kg/h |
|
JY-3500Q/600 |
80-200kw（gas/internal heating） |
4150*1570*2330 |
2200*550*70 |
|
|
JY-3500W/600 |
80-200kw（external heat exchange） |
3700*1580*2200 |
2200*550*70 |
|
|
JY-4500D/600 |
84kw（electric/internal heating） |
4700*1500*2200 |
3200*550*70 |
300~500kg/h |
|
JY-4500Q/600 |
80-200kw（gas/internal heating） |
5050*1600*2400 |
3200*550*70 |
|
|
JY-4500W/600 |
80-200kw（external heat exchange） |
4650*1560*2300 |
3200*550*70 |
|
|
JY-ZD5500D/600 |
120KW（electric/internal heating） |
5700*1500*2200 |
4200*550*70 |
400~800kg/h |
|
JY-5500Q/600 |
80-200kw（gas/internal heating） |
6050*1600*2400 |
4200*550*70 |
|
|
JY-ZD5500W/600 |
80-200kw（external heat exchange） |
5650*1560*2300 |
4200*550*70 |
|
|
JY-ZD6500D/600 |
120kw（electric/internal heating） |
6700*1600*2250 |
5200*550*70 |
800~1200kg/h |
|
JY-ZD6500Q/600 |
100-350KW（gas/internal heating） |
7000*1600*2400 |
5200*550*70 |
|
|
JY-ZD6500W/600 |
100-350KW（external heat exchange） |
6650*1560*2300 |
5200*550*70 |
|
|
JY-ZD7500D/800 |
200KW（electric/internal heating） |
7650*1780*2400 |
6200*750*70 |
1000~1500kg/h |
|
JY-ZD7500W/800 |
120-600kw（external heat exchange） |
7650*1560*2400 |
6200*750*70 |
|
|
JY-ZD8500W/800 |
120-600kw（external heat exchange） |
8650*1760*2400 |
7200*750*70 |
1500~1800 kg/h |
Batch fryers main parameters：
| Model |
Power/heat resource |
Dimension(mm) |
Frying area（mm) |
Oil volume（L） |
|
JY-BZ1000D |
63-120kw (electricity) |
1800*1700*1700 |
φ1000*300 |
370 |
|
JY-BZ1000Q |
80-200KW(gas) |
1600*1800*1700 |
φ1000*300 |
370 |
|
JY-BZ1300D |
63-120kw(electricity) |
2000*2000*1500 |
φ1300*300 |
450 |
|
JY-BZ1300Q |
80-200KW(gas) |
1800*2000*1700 |
φ1300*300 |
700 |
|
JY-BZ1500D |
63-120kw(electricity) |
2200*2200*1700 |
φ1500*300 |
630 |
|
JY-BZ1500Q |
80-200KW(gas) |
2400*2200*1700 |
φ1500*300 |
900 |
|
JY-BZ1600Q |
80-200KW(gas) |
2500*2400*1700 |
φ1600*300 |
1100 |
|
JY-BZ1700Q |
80-200KW(gas) |
2500*2600*1700 |
φ1700*300 |
1200 |
