Introduction

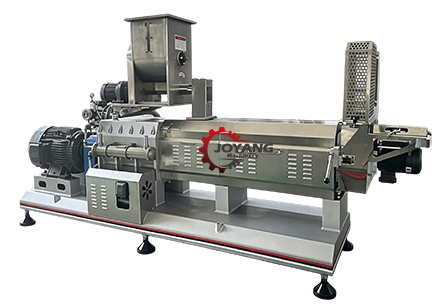

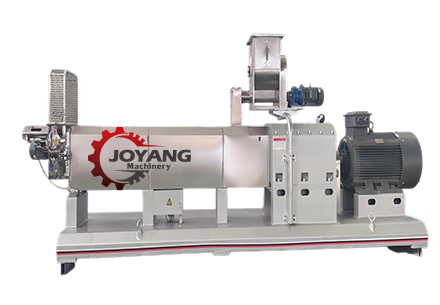

Modified starch processing machinery mainly use corn starch, potato starch, tapioca starch and so on. While extrusion and puffing, the original physical and chemical properties of starch are changed to varying degrees.


Joyang brand extruders’ barrel and screw structure are special designed, and with the use of water-cooling device, diversified the functions of modified starch. The series starch products which produced by our machine are suitable for field like textiles, food, paper, building materials, casting, and oil drilling, and so on. Among the deepening of research, the extruder will play an increasingly important role in the field of modified starch market.


The modified starch processing machinery is with advantages of easy to operate, flexible to adjust the formula, large output, small space occupation, high automation degree, energy saving, long life, etc.

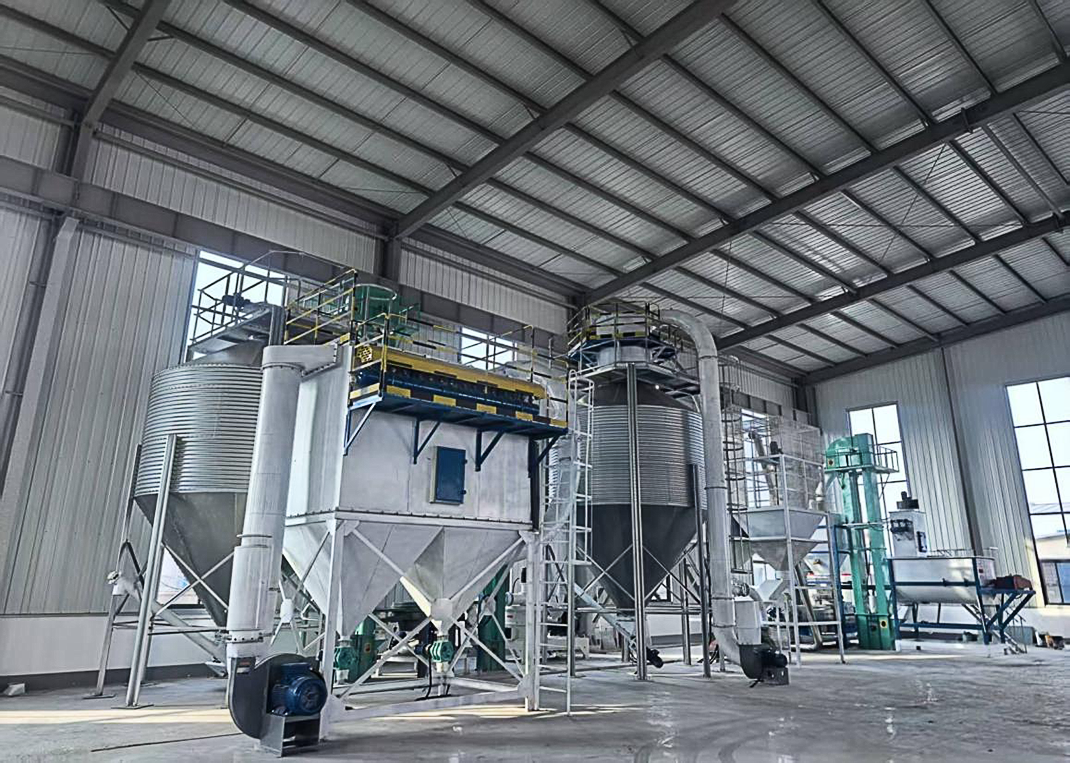

Flow chart of modified starch processing machinery:

Raw material mixing Extrusion & ModificationDrying Cooling 》Pulverizing Packaging


Sample:



Parameter

Model

Installed Power
(kw)

Power Consumption
(kw·h)

Capacity
(kg/h)

Dimension
(m)

JY-65

79

55

140-160

15x2.0x2.5

JY-70

110

72

240-260

22x3.5x3.5

JY-85

190

130

400-500

26x3.5x3.5

JY-95

270

176

600-800

30x3.5x4.5

JY-140

295

240

1000-1500

38x5.5x6.5
