In order to better provide cooling water to various production lines, Shandong Joyang Machinery Co., Ltd. can supply different types of cooling machine: cooling water towers, closed type cooling water towers, and chillers.
Through heat exchange, the cold water tower can output cooling water, thereby cooling the operating machine for 24 hours of continuous production.
|

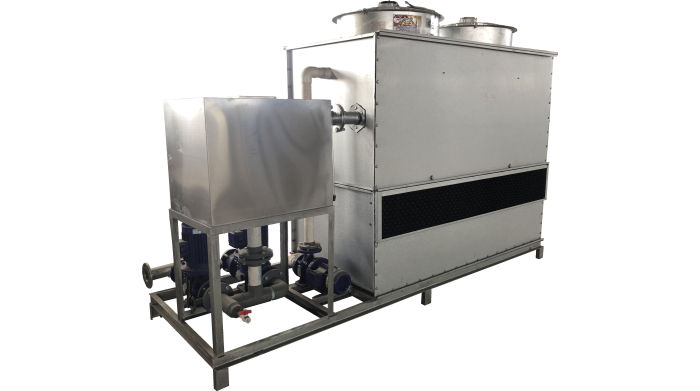

Closed Type Cooling Water Tower |
||||
|
Model |
Cooling Capacity |
Water Quantity |
Install Power |
Dimensions |
|
JY-4T |
20000 |
4 |
1.87 |
1850×750×1950 |
|
JY-6T |
30000 |
6 |
3 |
2100×1050×2150 |
|
JY-10T |
50000 |
10 |
3.7 |
2800×1050×2150 |
|
JY-15T |
75000 |
15 |
9 |
3000×1100×2150 |
|
JY-20T |
100000 |
20 |
11 |
3200×1100×2150 |
|

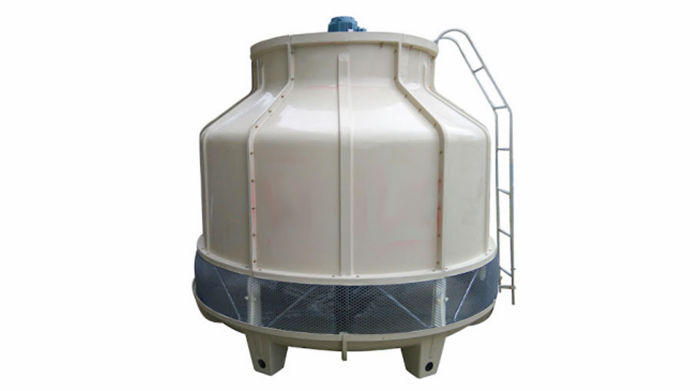

Cooling Water Tower |
|||
|
Model |
Water Quantity |
Install Power |
Dimensions |
|
JY-3T |
3 |
0.12 |
650×650×1200 |
|
JY-6T |
6 |
0.18 |
950×950×1410 |
|
JY-10T |
10 |
0.18 |
1020×1020×1670 |
|
JY-15T |
15 |
0.37 |
1170×1170×1700 |
|
JY-20T |
20 |
0.37 |
1400×1400×1780 |
|

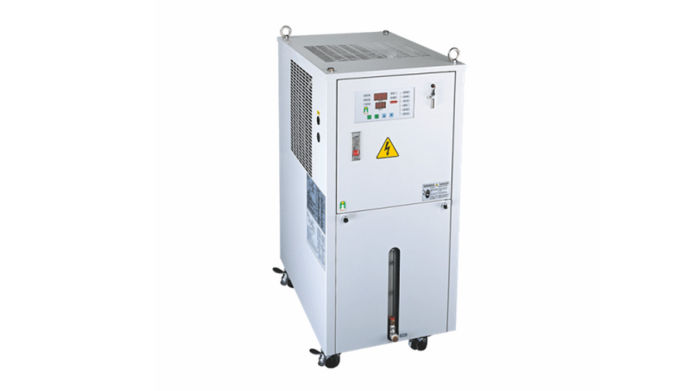

Chillers |
||||
|
Model |
Cooling Capacity |
Water Quantity |
Install Power |
Dimensions |
|
JY-6T |
860 |
6 |
1 |
380×450×800 |
|
JY-10T |
1290 |
10 |
1.5 |
380×450×835 |
|
JY-18T |
2150 |
18 |
2.5 |
470×530×1135 |
|
JY-25T |
3000 |
25 |
3.5 |
530×520×1345 |
